•  PVC DEHP-free

•  Latex-free

•  Total set length: 285 cm

•  Priming volume: 22 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Injection port - lower administration set’s section

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

ST10

REF: 08110000

BASIC SETS

•  PVC DEHP-free

•  Latex-free

•  Total set length: 285 cm

•  Priming volume: 22 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

ST11

REF: 08111000

ST12

REF: 08112000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 285 cm

•  Priming volume: 22 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Needle-free port - lower administration set’s section

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

BLOOD AND BLOOD PRODUCTS ADMINISTRATION SETS

BL10

REF: 08210000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 250 cm

•  Priming volume: 22 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Drip chamber 20 drops/mL with 200 µm filter (adapted to the blood)

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

BL11

REF: 08211000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 250 cm

•  Priming volume: 22 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Drip chamber 20 drops/mL with 200 µm filter (adapted to the blood)

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Injection port - lower administration set’s section

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

BL12

REF: 08212000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 250 cm

•  Priming volume: 22 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Drip chamber 20 drops/mL with 200 µm filter (adapted to the blood)

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Needle-free port - lower administration set’s section

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

ONCOLOGICAL SETS

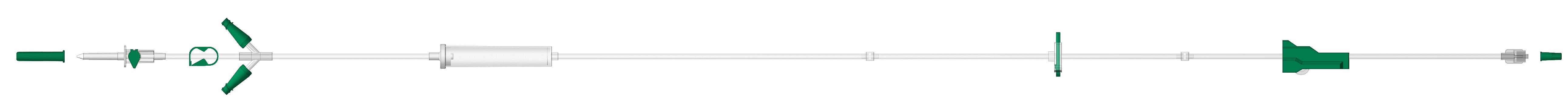

ON23

REF: 08323000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 304 cm

•  Priming volume: 24 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Roberts clamp

•  2 x needle-free port - top infusion set’s section

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

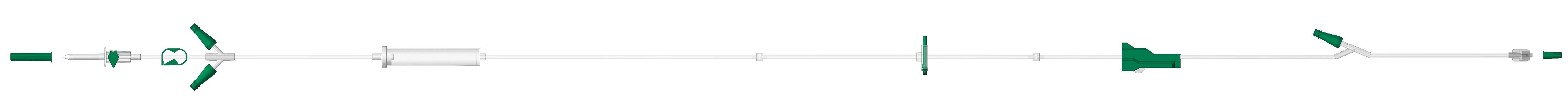

ON24

REF: 08324000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 304 cm

•  Priming volume: 24 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Roberts clamp

•  2 x needle-free port - top infusion set’s section

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Needle-free port - lower administration set’s section

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

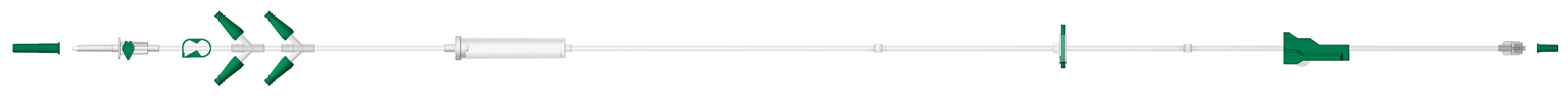

ON25

REF: 08325000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 304 cm

•  Priming volume: 24 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Roberts clamp

•  4 x needle-free port - top infusion set’s section

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

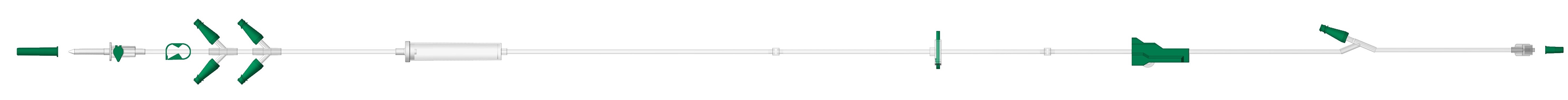

ON26

REF: 08326000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 304 cm

•  Priming volume: 24 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Roberts clamp

•  4 x needle-free port - top infusion set’s section

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Needle-free port - lower administration set’s section

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

BASIC EXTENSION SETS

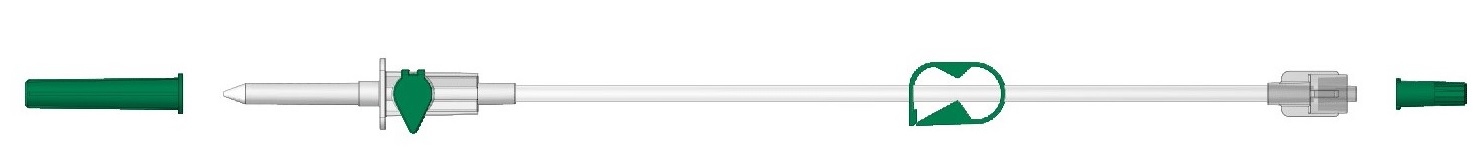

EX20

REF: 08920000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 40 cm

•  Priming volume: 2.5 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Roberts clamp

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

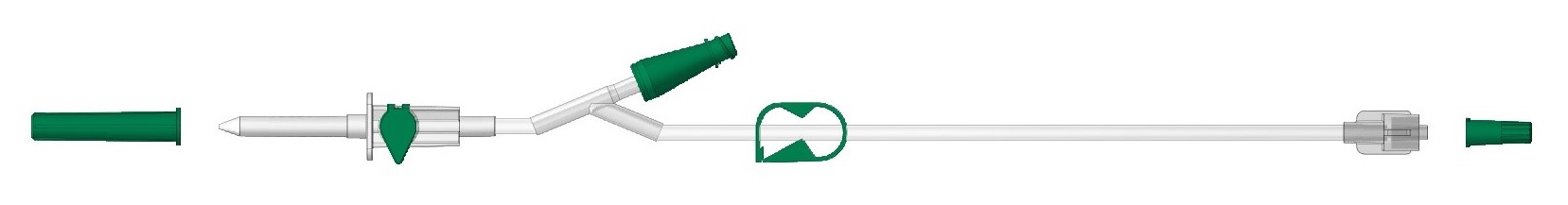

EX21

REF: 08921000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 40 cm

•  Priming volume: 2.5 ml

•  Spike with air-inlet and with antibacterial filter and stopper

•  Needle-free port - top infusion set’s section

•  Roberts clamp

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

PEDIATRIC SETS

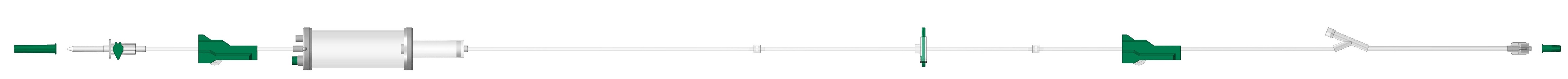

PD51

REF: 08451000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 335 cm

•  Priming volume: 22 ml (burette not included)

•  Spike with air-inlet and with antibacterial filter and stopper

•  150 ml burette with injection port and air valve

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Injection port - lower administration set’s section

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

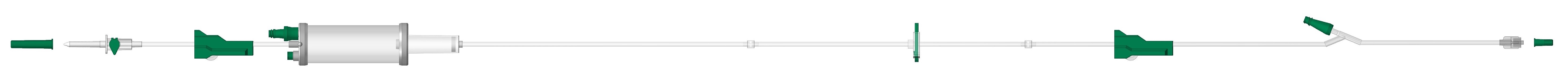

PD52

REF: 08452000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 335 cm

•  Priming volume: 22 ml (burette not included)

•  Spike with air-inlet and with antibacterial filter and stopper

•  150 ml burette with needle-free port and air valve

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Needle-free port - lower administration set’s section

•  Male Luer Lock connector

•  Luer Lock cap with hydrophobic filter

ENTERAL FEEDING SETS

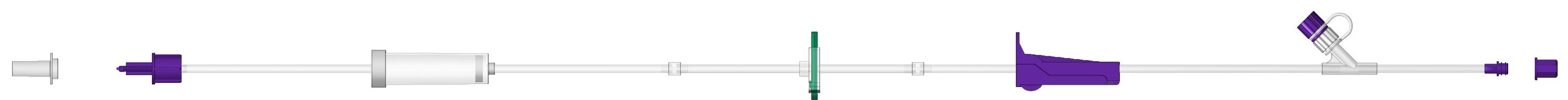

NE52

REF: 08552000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 285 cm

•  Priming volume: 23 ml

•  ENPlus spike

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Male ENFit port with cap

•  Female ENFit connector

•  ENFit cap

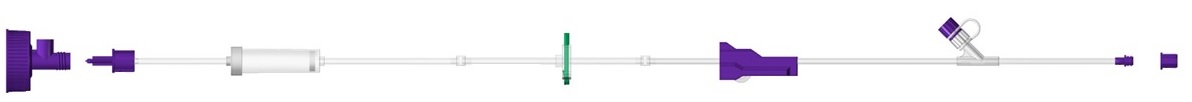

NE62

REF: 08562000

•  PVC DEHP-free

•  Latex-free

•  Total set length: 285 cm

•  Priming volume: 23 ml

•  Universal bottle adapter

•  ENPlus spike

•  Drip chamber 20 drops/mL with 15 µm filter

•  Free flow protection clamp (FFPC)

•  Roller clamp

•  Male ENFit port with cap

•  Female ENFit connector

•  ENFit cap
